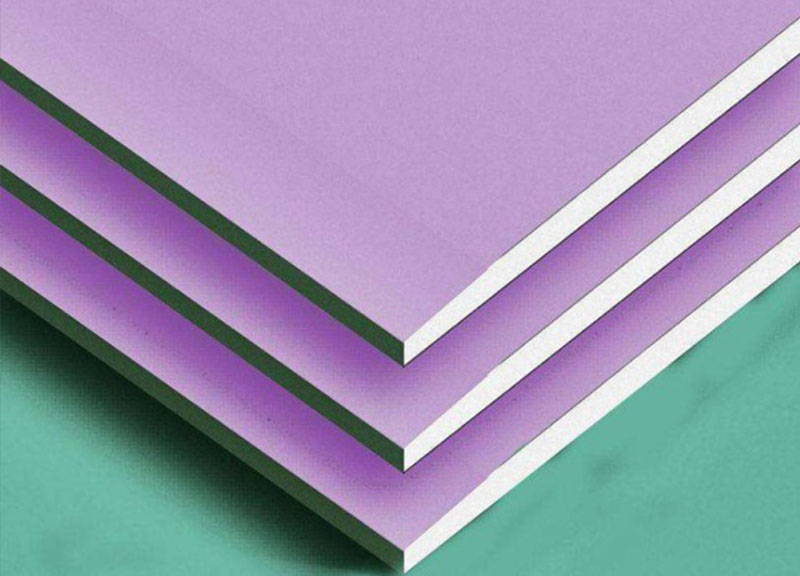

Gypsum board for ceiling and wall
Normal, Moisture proof, Fireproof
Match with steel profiles: stud, track, channel, angle
product description
Features:
1. Light weight: in favor of anti-shake and save building cost.
2. Keep warm and heat insulation: special lacunars structure.
3. Fireproof: gypsum core is noncombustible, absorb heat to postpone rise of temperature around when meet fire.
4. Sound insulation: special cavum structure, improve sound absorption performance at large degree.
Variety:
1.Standard Type(ivory protective paper),
2.Fire Resistant type (red protective paper),
3.Moisture Resistant type (green protective paper);
Specification:
| Width | 1200mm | 1220mm | ||||||
| Length | 1800mm | 1830mm | 2000mm | 2400mm | 2440mm | 2500mm | 3000mm | |
| Thickness | 7.5mm | 9mm | 9.5mm | 10mm | 12mm | 12.5mm | 15mm | 15.9mm |
Technical Performance
| Item | Standard value | Actual value | ||||
| Weight per unit | --- | Thickness(mm) | Normal | Fire proof | Water proof | |
| >9.5 | 9.5 | 7.7 | 8.3 | 8.2 | ||
| >12.0 | 12 | 9.4 | 9 | 10.3 | ||
| >15.0 | 15 | 11.6 | 11.8 | --- | ||
| Rupture load(N) | Vertical | Horizontal | Thickness (mm) | Vertical | Horizontal | |
| <360 | <140 | 9.5 | 513 | 171 | ||
| <500 | <180 | 12 | 684 | 213 | ||
| <650 | <220 | 15 | 781 | 281 | ||
| Protect paper joint with core material | Not naked | Not naked | ||||
| Stability of meeting fire (for fire proof board) | <20 | >20 | ||||
| Soap up ratio(%)(for fire proof board) | >10 | Thickness (mm) | Soap up ratio | |||
| 9.5 | 7.2 | |||||
| 12(12.7) | 8.5 | |||||
| Inner irradiation ratio | type direction materials | |||||
| Outer irradiation ratio | type direction materials | |||||
| Remark: According to China standard of GB/T 9775-1999, GB 6566-2001 | ||||||
