product description

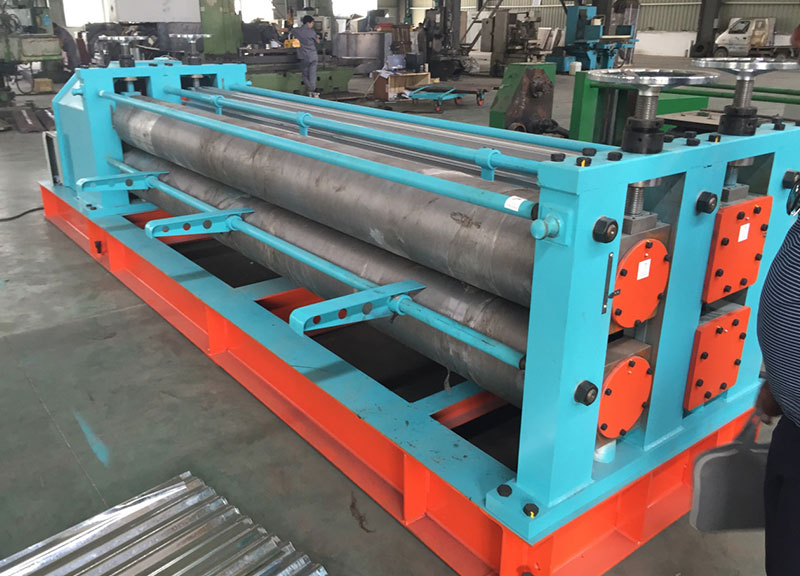

一.  Barrel forming machine

Roofing Forming machine

1. Transverse barrel corrugating type.

2. Raw material: thin Galvanized steel sheets, Aluzinc steel sheets etc

3. Sheet width: 762mm (2.5 feet), 914mm (3 feet), 1000mm, 1250mm

4. Width deviation: +25mm,-10mm.

5. Sheet Maximum length: 4500mm, Thickness: 0.14mm to 0.30mm

6. Pitch: 76 mm (+/-1.0mm) or customer(s) required.

7. Depth: 18mm (+/-0.5mm) or customer(s) required.

8. Corrugation: large round wave (Based on JIS G3316).

9. Drive: geared motor 7.5Kw with reducer X one (1).

10. Roll revolution: ax 12/minute.

11. Guider for sheet input: welded steel structure with stopper for setting width.

12. Corrugation roll: barrel length 2500mm-4500mmL.

13. Pitch adjust roll: barrel length 2500mm-4500mmL.

14. Up & down device for corrugation and pitch adjusting rolls.

15. Screw X four (4), adjusted by manual handles.

16. Guider for output products: welded steel plates.

17. Control and op panel: relay type X one (1).

18. Hardness: full hard, semi hard, soft.

19. Power: 380V (50HZ).

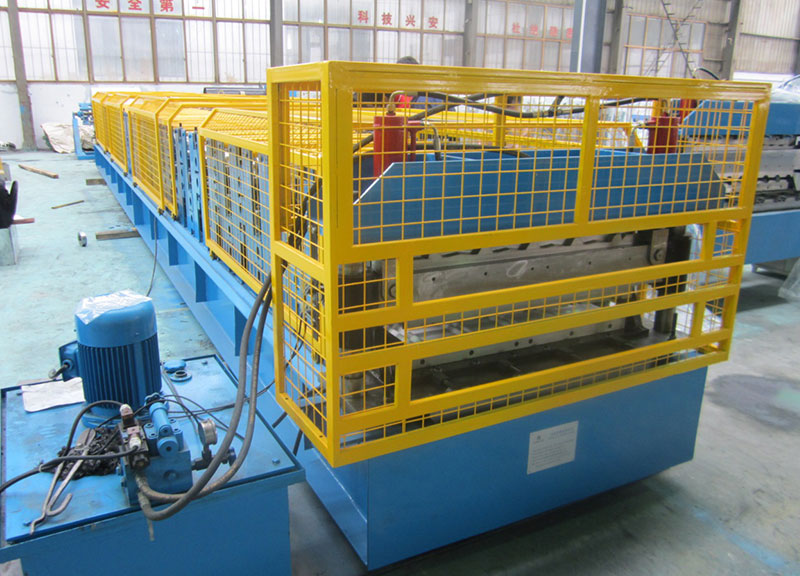

二. Double layer machine

Roofing Forming machine

Working process: decoiler-feeding-roll forming-cutting-end product
Power5.5KW+4KW Roller material45# steel with chrome
StationAbout 20 stationsDriveBy chain
shaft70mm  solidSize of lineAbout 15mx2.0x1.7m
DecoilerManual or hydraulicContainer1X40GP
